多把手、高强度钢和不锈钢断杆紧固件。

Multi-grip, high strength steel and stainless steel breakstem fasteners.

主要特性和优点

Key features and benefits

*高剪切和拉伸强度提供了强大的，抗振动接头

High shear and tensile strength provides strong,vibration resistant joints

*不锈钢选项具有很高的耐腐蚀性，是需要升高的应用的理想选择温度Stainless steel option provides high corrosion resistance and is ideal for applications requiring elevated temperatures

*在材料厚度上多握把能力适应广泛的变化Multi-grip capability accommodates wide variations in material thickness

*一个紧固件可以用来取代几个标准的夹具紧固件，从而减少紧固件库存和简化库存管理

One fastener can be used to replace several standard grip fasteners thus reduced fastener inventory and simpler stock control

*良好的孔充填可以补偿不规则、过大、开槽或错位的孔，并可以在非标准孔中停止运动Good hole fill compensates for irregular, oversized,slotted or misaligned holes and can stop movement in non-standard holes

*保留的阀杆避免了由于阀杆松动造成的损坏、电气问题或嘎嘎声Retained stem avoids damage, electrical problems or rattling caused by loose stems

*提供一个大的盲区轴承区域对后板Provides a large blind side bearing area against the rear sheet

*将尾部轴承负载/夹紧负载分散在后片上，使其非常适合用于薄板材料Spreads the tail bearing load/clamp load on the rear sheet making it ideal for use in thin sheet materials

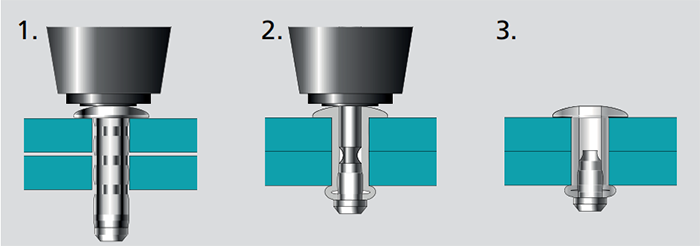

安装顺序

Typical placing sequence

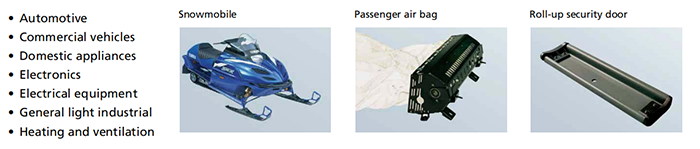

应用范围

Assembly applications
